Cloud Computing (WS2627)

Die Aufgaben für das Semesterprojekt werden am 15. Oktober besprochen. An diesem Tag werden die Teams gebildet und die Aufgaben auf die die einzelnen Teammitglieder verteilt. Alle Teilnehmer des Moduls müssen am 15. Oktober unbedingt teilnehmen! Erscheinen Sie auf jeden Fall pünktlich. Das bedeutet konkret: 11:45 Uhr. Beachten Sie den Zeitplan für das Semester!

The assignments for the semester project will be discussed on October 15th. On that day, teams will be formed and tasks will be assigned to individual team members. All participants in the course must be sure to attend on October 15th! Be sure to arrive on time in class. Specifically, this means: 11:45. Pay attention to the semester schedule!

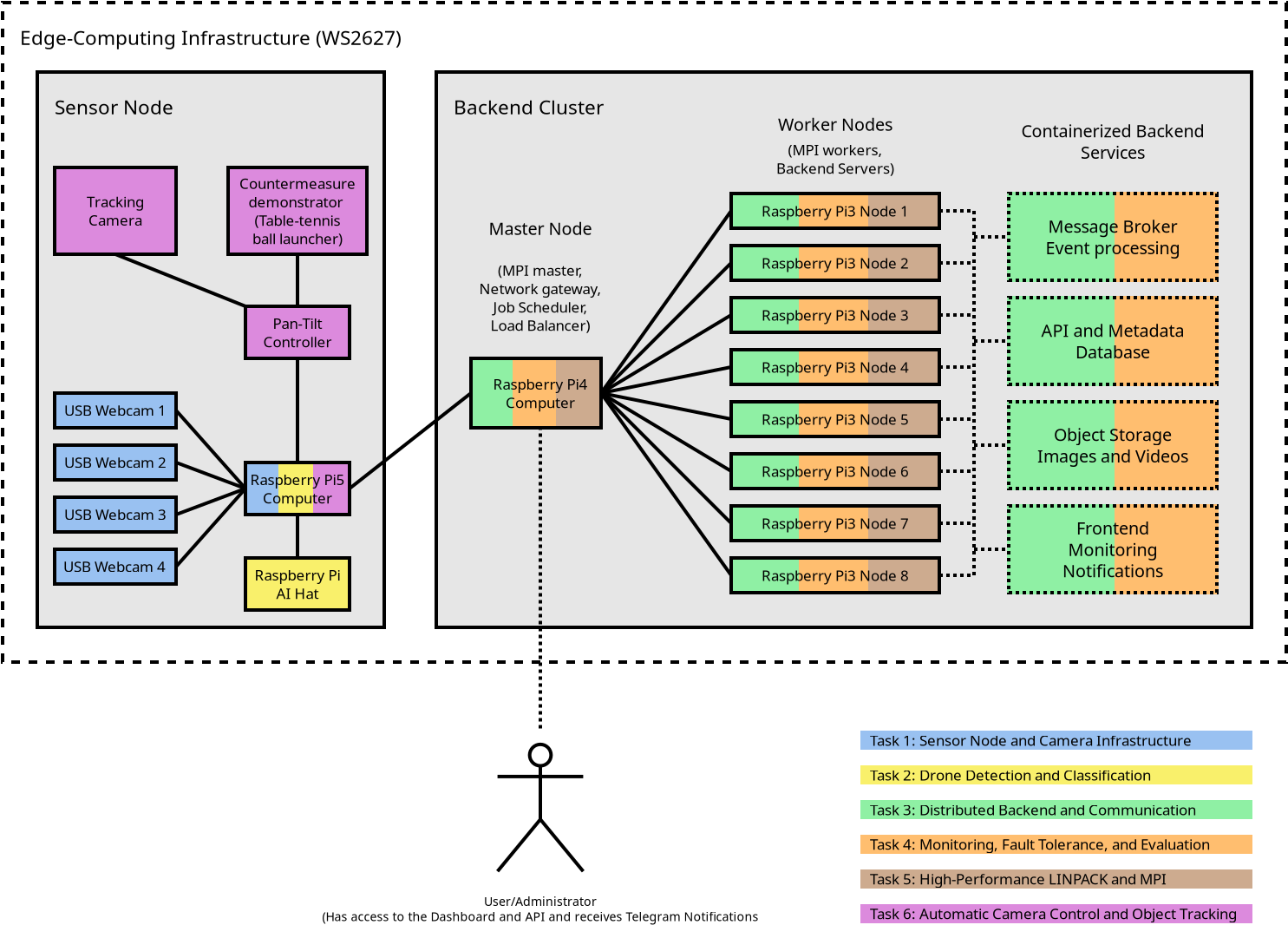

This master's-level course applies the fundamentals of distributed systems, edge computing, cloud computing, and artificial intelligence in practice. Groups of students combine hardware and software components to develop a complex distributed system. The goal of the semester project is to develop an edge computing system that detects, identifies, and tracks drones using multiple cameras. Each group will design, build, test, document, and present a complete prototype consisting of an edge-based sensor node and a distributed backend cluster. The sensor node will use several stationary cameras to monitor a large section of the sky. When a possible drone is detected, the system will classify the object and track its movement. The backend infrastructure consists of a cluster system that receives events, images, video clips, status information, and monitoring data from the sensor node. The backend provides persistent storage, an API, a web-based dashboard, monitoring, and notification services.

This course has no written exam. Instead, your individual grade will depend entirely on your work and the results of the semester project.

The project includes the following tasks:

• Task 1: Sensor Node and Camera Infrastructure. Develop and set up an edge sensor node that includes several stationary overview cameras (USB webcams or CSI-connected cameras) and provides local buffering of images and events. The students must investigate, among other things, the effects of image resolution, frame rate, field of view, exposure settings, USB bandwidth, power consumption, and processing load. The system does not need to monitor the entire sky. Instead, the group must define and document a realistic horizontal and vertical observation area.
• Task 2: Drone Detection and Classification. Collect and annotate a representative dataset and train an object-detection model using, for example, TensorFlow, OpenCV, or YOLO. The model may be trained using the group's own hardware, in which case a supported GPU is required, or a cloud service such as Roboflow or V7. The model must recognize drones and distinguish them from birds, airplanes, helicopters, and other objects. The dataset should contain images recorded with the project hardware as well as challenging negative examples captured under different weather, lighting, distance, and background conditions. Separate training, validation, and test datasets must be used. The group must evaluate the model using suitable metrics such as precision, recall, the F1 score, a confusion matrix, and the number of false alarms per observation hour. Merely using an existing pretrained model is not sufficient. The image-processing pipeline should combine object detection with suitable preprocessing techniques such as motion detection, background subtraction, regions of interest, and temporal confirmation across multiple frames.
• Task 3: Distributed Backend and Communication. Develop a containerized backend for the cluster system. The backend should include a message broker (e.g., Apache ActiveMQ, Apache Qpid, ActiveMQ, or RabbitMQ), event-processing services, an API, a metadata database (e.g., PostgreSQL or MariaDB) storage for images and video clips, a web-based frontend, monitoring (see Task 4), and a Telegram Bot as notification service (see Task 4). Communication between the sensor node and the backend may use MQTT, REST, or similar protocols and must support authentication, encryption, automatic reconnection, and reliable event delivery. To provide reliable and high-performance storage, the cluster should include either a distributed file system, such as Ceph with the Ceph Object Gateway S3 API, or an object storage service, such as SeaweedFS or MinIO. Continuous transmission of all video streams should be avoided. Instead, the sensor node should perform the initial processing locally and transfer only relevant metadata, images, and short video clips. The backend architecture must take the limited memory and processing capabilities of the single-board computer nodes into account. It should remain available when an individual cluster node or service fails and should therefore provide high availability.
• Task 4: Monitoring, Fault Tolerance, and Evaluation. Develop a monitoring solution for the complete infrastructure, including the backend and the sensor node. The dashboard should present detections, confidence values, images, video clips, tracking information, sensor status, cluster status, resource utilization, temperatures, network traffic, storage utilization, and end-to-end latency. Open-source tools such as Prometheus, Grafana, or Checkmk may be used. The group must define and demonstrate failure scenarios such as node failure, interruption of the network connection, restart of the sensor node, camera failure, backend service failure, and unavailable storage. Implement a Telegram notification feature using a Telegram bot. The bot should inform the team members about infrastructure health events and drone detections. The complete system must be evaluated experimentally. The groups must investigate network traffic and the maximum processing throughput of the backend.
• Task 5: High-Performance LINPACK and MPI. Investigate the performance, measured in GFLOPS, of the cluster system using the industry-standard HPL benchmark (High-Performance LINPACK). Deploy the Message Passing Interface (MPI) on the cluster to turn it into a high-performance cluster. Demonstrate the scalability of the worker nodes using MPI applications, and analyze the achievable performance and relevant bottlenecks. Also demonstrate Amdahl's law and Gustafson's law using at least two MPI examples and monitoring the resource utilization by standard tools such as free, top, htop, iostat, netstat, vmstat, and iotop.
• Task 6: Automatic Camera Control and Object Tracking. Design and, if possible, build a motorized pan-tilt platform for a higher-resolution camera. The system must convert detections from the stationary cameras into suitable pan and tilt angles and automatically point the tracking camera towards the detected drone. Servomotors or stepper motors may be controlled by a dedicated microcontroller. As an optional extension, a low-energy countermeasure demonstrator may be developed using a table-tennis-ball launcher or a similar mechanism.
• Task 7: Documentation and Presentation. Create complete online documentation that enables other students, researchers, and lecturers to reproduce the project. Instead of a traditional written project report, the group should create comprehensive and easy-to-understand online documentation, for example using GitHub Pages, and present the results with a poster and a live demonstration.

The semester project covers many topics and technologies from cloud computing, cluster computing, distributed and parallel systems, computer networks, and operating systems. These include:

• Amdahl's law and Gustafson's law (see Slide Set 1)
• Client-server architectures (see Slide Set 1)
• High-availability clustering, high-performance clustering, and high-throughput clustering (see Slide Set 2)
• Distributed file systems (see Slide Set 2)
• The Message Passing Interface (MPI) for developing cluster applications (see Slide Set 2)
• Evaluation of the performance and throughput of different resources, especially computing capacity, storage, and network bandwidth (see Slide Set 2)
• Container-based virtualization and web services (see Slide Set 3)
• Object storage services (see Slide Set 3)

On October 15th, each team will receive one aluminum case (460 x 340 x 160 mm) with hardware that should be sufficient for the semester project. The aluminum case contains:

• 4x USB webcams
• Tracking camera
• TP-Link 24-Port Smart Gigabit Ethernet switch with power cable or power supply unit
• 11 RJ45 twisted-pair network cables
• Raspberry Pi 5 single-board computer (8 GB RAM)
• Raspberry Pi 27W USB-C Power Supply (for the Raspberry Pi 5)
• Raspberry Pi 4 single-board computer
• Raspberry Pi 15W USB-C Power Supply (for the Raspberry Pi 4)
• 8x Raspberry Pi 3 single-board computers
• 2x Anker PowerPort 6 or PowerPort 10 USB power supplies (6 or 10 ports, 60 W or 5 ports, 40 W) (for the Raspberry Pi 3)
• 8x Micro USB power cables (for the Raspberry Pi 3)
• 2x HDMI to HDMI cables (for the Raspberry Pi 3)
• Micro-HDMI to HDMI adapter cable (for the Raspberry Pi 4/5)
• Raspberry Pi Micro-HDMI to HDMI adapter (for the Raspberry Pi 4/5)
• LogiLink USB-C 3-Port Hub with Gigabit Adapter
• Raspberry Pi AI Camera module
• Raspberry Pi Camera Module
• Raspberry Pi AI HAT+ (for the Raspberry Pi 5)
• Raspberry Pi Flash Drive USB 3.0 128 GB
• 500 GB PCIe GEN4 NVMe SSD M.2 2280 Flash Drive in external case
• 10x MicroSD cards (32 GB each)
• USB 3.0 card reader for SD and MicroSD cards
• 2x SD/MicroSD card adapter
• Spacer bolts M2.5 (many)
• Screwdriver set with precision bit set
• Power strip
